Bending a door
Goto page 1, 2, 3  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
marshallbbq
BBQ Fan


Joined: 02 Dec 2007
Posts: 163
Location: Knoxville Tn

PostPosted: Thu Jan 17 08 5:32 am    Post subject: Bending a door Reply with quote

I purchased a offset smoker (made from a 120 gallon propane tank) but the door does not seal completely. Has anyone tried to bend or reform a door? It is made from 1/4 inch steel. I have thought about heating. Any other suggestions?
_________________
Homemade trailer offset
18 in WSM
26.75 Weber Kettle
Large BGE
Medium BGE
UDS
Ducan gasser.
Back to top
View user's profile Send private message
Alien BBQ
BBQ All Star


Joined: 12 Jul 2005
Posts: 5426
Location: Roswell, New Mexico

PostPosted: Thu Jan 17 08 5:40 am    Post subject: Reply with quote

Use wood stove gasket is my best suggestion. Try McMaster Carr.
_________________
https://www.linkedin.com/in/michaeloberry
Back to top
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger
Travis_Creek
BBQ Pro


Joined: 10 Jul 2005
Posts: 581
Location: Aubrey, TX

PostPosted: Thu Jan 17 08 5:41 am    Post subject: Reply with quote

You need to tension it with a pipe clamp (or 2) and heat it on the outside. It is easier to stretch metal than compress it. Heat it on the inside and you'll be fighting yourself. Be careful hitting it, especially when hot, it will be easy to dent. If that don't work, I have a good bottle jack trick that works, but you will need to do some welding.
_________________
SMOKERS THAT WORK!!!
214-471-4690
Back to top
View user's profile Send private message Send e-mail Visit poster's website
txfireguy2003
BBQ Fan


Joined: 27 Nov 2007
Posts: 130

PostPosted: Thu Jan 17 08 5:41 am    Post subject: Reply with quote

You might try flame straightening by using a rosebud tip on Oxy/Ace torch to get a "strip" of the metal on the inside suface of the door up to a cherry red color, then allow it to cool and it might pull in some. I have had VERY limited success with that process though. Another option I learned from this site, depending on how big of a gap you have, would be to go to a fireplace store and get some wood stove cement and a rope type gasket to fill the void and make a seal. I plan to use this method on my current project whether there is any warpage or not, just to get a total seal.
Back to top
View user's profile Send private message
marshallbbq
BBQ Fan


Joined: 02 Dec 2007
Posts: 163
Location: Knoxville Tn

PostPosted: Thu Jan 17 08 5:56 am    Post subject: Reply with quote

I have tried rope gasket and have run into two problems. First the door has a solid seal in some areas but not so good in other, so the gasket will not fit everywhere. It is to thick or thin in areas. Also, I have had trouble getting it to stick to the door and the gasket. I have used stove cement, still is coming loose.
_________________
Homemade trailer offset
18 in WSM
26.75 Weber Kettle
Large BGE
Medium BGE
UDS
Ducan gasser.
Back to top
View user's profile Send private message
marshallbbq
BBQ Fan


Joined: 02 Dec 2007
Posts: 163
Location: Knoxville Tn

PostPosted: Thu Jan 17 08 5:59 am    Post subject: Reply with quote

Travis_Creek wrote:
You need to tension it with a pipe clamp (or 2) and heat it on the outside. It is easier to stretch metal than compress it. Heat it on the inside and you'll be fighting yourself. Be careful hitting it, especially when hot, it will be easy to dent. If that don't work, I have a good bottle jack trick that works, but you will need to do some welding.


When you say "tension it" what are you referring to?
_________________
Homemade trailer offset
18 in WSM
26.75 Weber Kettle
Large BGE
Medium BGE
UDS
Ducan gasser.
Back to top
View user's profile Send private message
Travis_Creek
BBQ Pro


Joined: 10 Jul 2005
Posts: 581
Location: Aubrey, TX

PostPosted: Thu Jan 17 08 6:02 am    Post subject: Reply with quote

Clamp it from top to bottom, the direction you want to bend it. Bending a door back is not easy, you may even have to cut it off, bend it, then reweld.
_________________
SMOKERS THAT WORK!!!
214-471-4690
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Smoke on the Horizon
BBQ Super Pro


Joined: 27 Jun 2007
Posts: 1362
Location: Tulsa

PostPosted: Thu Jan 17 08 7:20 am    Post subject: Reply with quote

Travis_Creek wrote:
Clamp it from top to bottom, the direction you want to bend it. Bending a door back is not easy, you may even have to cut it off, bend it, then reweld.


Travis,
You never cease to amaze me with the way you are willing to share your experience and tricks of the trade here on the ring.

Thanks for all your help and advice.

Don
_________________
Team Enoserv
Back to top
View user's profile Send private message
marshallbbq
BBQ Fan


Joined: 02 Dec 2007
Posts: 163
Location: Knoxville Tn

PostPosted: Thu Jan 17 08 7:49 am    Post subject: Reply with quote

Travis_Creek wrote:
Clamp it from top to bottom, the direction you want to bend it. Bending a door back is not easy, you may even have to cut it off, bend it, then reweld.


Travis,

I am trying to bend it in toward the smoker, the door is about 4 foot wide and 2 foot in height. When you say bend it from top to bottom, I am sorry I am still confused. The top of the door seals fairly well but the bottom all the way across needs about 1/2 inch and one side a little more. The top I can fix with a rope gasket. Is there anyway to clamp it around the tank and then heat? Thanks for your help Travis.
_________________
Homemade trailer offset
18 in WSM
26.75 Weber Kettle
Large BGE
Medium BGE
UDS
Ducan gasser.
Back to top
View user's profile Send private message
saintjoemo
Newbie


Joined: 29 Sep 2007
Posts: 43

PostPosted: Thu Jan 17 08 10:32 am    Post subject: Reply with quote

We had a similar problem on our build. We placed metal pieces on the concrete floor, placed a piece of flat metal in the middle, then ran over the middle of the door with a forklift. Worked pretty well. Don't have any idea what your equipment resources are. How about an idea of what you have to work with?
Back to top
View user's profile Send private message Send e-mail
Travis_Creek
BBQ Pro


Joined: 10 Jul 2005
Posts: 581
Location: Aubrey, TX

PostPosted: Thu Jan 17 08 11:55 am    Post subject: Reply with quote

Open the door and place a clamp or two from top to bottom on the inside of the door. It should bend the door in the direction you want. The clamps are holding tension, then heat the outside of the door.
_________________
SMOKERS THAT WORK!!!
214-471-4690
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Ratmo
Newbie


Joined: 26 Dec 2006
Posts: 39
Location: Peaster Tx

PostPosted: Thu Jan 17 08 3:16 pm    Post subject: Reply with quote

Could this be a hinge problem?
Ive had this happen before, but on mine, it needed to be ground down some on the top inside. I have seen the same problem with the rod type hinge being set to far back. No pro here, just got me to thinkin.
_________________
"Hobby Only" Nuthin fer sale!
Back to top
View user's profile Send private message
jib
BBQ Fan


Joined: 27 Jan 2007
Posts: 301
Location: Covington, WA

PostPosted: Fri Jan 18 08 3:49 am    Post subject: Reply with quote

A reallly good welder with a gas torch can straighten that up quickly.

My dad owned a structura steel fab shop. He built some ornate Stainless railing with a 4 inch pipe on the top, as the handrail. By the time all the comonents were fabbed up, it looked like a piece of spagetti. I watched his top guy with a water spray bottle and a Oxy-acetylene torch work his way down that piece, heating, cooling, heating, etc. He had a 20 foot length done, straight as new, in under an hour. I asked him to show me how to do it, which he did, but he also told me it would take 10+ years to master; which I believe.

Jack
_________________
WSM
Charbroil gasser grill
Currently planning a Stumps clone build
Back to top
View user's profile Send private message
JoeD
BBQ Fan


Joined: 09 Dec 2007
Posts: 231

PostPosted: Fri Jan 18 08 7:08 am    Post subject: Reply with quote

Travis_Creek wrote:
You need to tension it with a pipe clamp (or 2) and heat it on the outside. It is easier to stretch metal than compress it. Heat it on the inside and you'll be fighting yourself. Be careful hitting it, especially when hot, it will be easy to dent. If that don't work, I have a good bottle jack trick that works, but you will need to do some welding.


Ditto on that
Back to top
View user's profile Send private message
Forkin Pork
BBQ Pro


Joined: 25 Jan 2007
Posts: 687
Location: Stamford, Connecticut

PostPosted: Fri Jan 18 08 8:55 am    Post subject: Reply with quote

By the way little fella's. How do we get stove rope or gasket to stay on or stick to the door. Rolling Eyes Im at a loss!
I'll be gettin a diamomd plate Fatty soon, bet they figure out of to make the darn thing stay in place!
But I do need to find the asnwer to this problem, sews I can finish the project Im working.
Back to top
View user's profile Send private message Send e-mail
FATFRANK
Newbie


Joined: 27 Nov 2007
Posts: 96
Location: Wichita Falls, TX

PostPosted: Sat Jan 19 08 2:34 am    Post subject: Reply with quote

Northsmoke wrote:
By the way little fella's. How do we get stove rope or gasket to stay on or stick to the door. Rolling Eyes Im at a loss!
I'll be gettin a diamomd plate Fatty soon, bet they figure out of to make the darn thing stay in place!
But I do need to find the asnwer to this problem, sews I can finish the project Im working.


I usually rivet them on with a washer under the rivet head.
Back to top
View user's profile Send private message
hvac81
BBQ Pro


Joined: 12 Sep 2005
Posts: 590
Location: Fort Mill SC

PostPosted: Sat Jan 19 08 7:23 am    Post subject: Reply with quote

FATFRANK wrote:
Northsmoke wrote:
By the way little fella's. How do we get stove rope or gasket to stay on or stick to the door. Rolling Eyes Im at a loss!
I'll be gettin a diamomd plate Fatty soon, bet they figure out of to make the darn thing stay in place!
But I do need to find the asnwer to this problem, sews I can finish the project Im working.


I usually rivet them on with a washer under the rivet head.

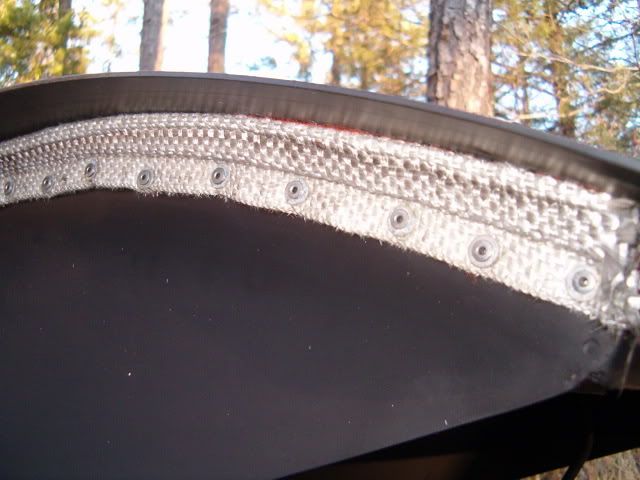

Like so?




Back to top
View user's profile Send private message Send e-mail
smokin Jim
BBQ Super Fan


Joined: 07 Feb 2005
Posts: 449
Location: Saskatchewan, Canada

PostPosted: Sat Jan 19 08 9:16 am    Post subject: Reply with quote

The stove cement that comes with the rope gasket is no good. What I have used is the red, high temperature silicone sealant. This seems to do the job. In fact I know of some that just run a bead of the high temp silicone, let it set up and then close the door. Letting the silicone make the gasket.
_________________
18.5" WSM & 22.5" WSM
Weber 22.5" grill
BDS clone
VC5007 gasser
KCBS CBJ
Back to top
View user's profile Send private message Visit poster's website
divechief



Joined: 21 Sep 2007
Posts: 20
Location: Sevierville, Tennessee

PostPosted: Thu Feb 21 08 5:11 am    Post subject: Reply with quote

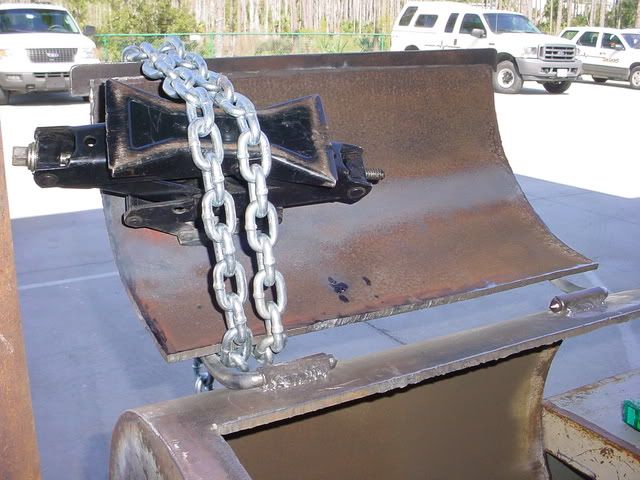

Here are a few pics of how I bent my door into shape. It's 3/8" thick. I heated it with a torch and cranked tension into it with an old jack. The first try I went too far and had to do it again with the jack on the outside of the door. I didn't take pics of the second bend.



Back to top
View user's profile Send private message
mrcustomsteel
BBQ Super Pro


Joined: 01 Mar 2005
Posts: 1997
Location: Bilings, still a Texan, MT

PostPosted: Thu Feb 21 08 7:34 am    Post subject: Reply with quote

divechief, that's sweet. Consider that idea stolen!

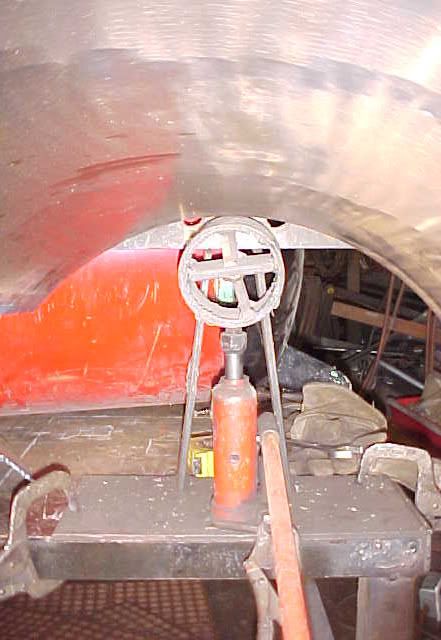

Here's a couple of ways I've done it:


_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com
Back to top
View user's profile Send private message Visit poster's website
