I had time to finish the OK Joe mods now she needs paint.
Goto page Previous  1, 2, 3, 4  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
Chuck
BBQ Pro


Joined: 09 Oct 2006
Posts: 529
Location: Mission Kansas

PostPosted: Wed Oct 14 09 8:32 am    Post subject: red Reply with quote

k.a.m. you are going to paint it red (right)
Razz Razz Razz

Stilwell Chuck
Back to top
View user's profile Send private message Send e-mail
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Wed Oct 14 09 7:19 pm    Post subject: Re: red Reply with quote

Chuck wrote:
k.a.m. you are going to paint it red (right)
Razz Razz Razz

Stilwell Chuck


Ha, I wish Chuck. This is the same son-law-law that bleeds Orange. You know, Hook em Horns Laughing
I am fixing to start a trailer mount and trying to convince my son-in-laws brother to go with a red trailer. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
DreChar
BBQ Fan


Joined: 22 Sep 2009
Posts: 179
Location: Lubbock TX

PostPosted: Thu Oct 15 09 1:19 am    Post subject: Re: red Reply with quote

k.a.m. wrote:


Ha, I wish Chuck. This is the same son-law-law that bleeds Orange. You know, Hook em Horns Laughing
I am fixing to start a trailer mount and trying to convince my son-in-laws brother to go with a red trailer. Very Happy


Paint it red and black and throw a double T on the smoke stack just for fun Very Happy
Back to top
View user's profile Send private message
BabyHuey
BBQ Fan


Joined: 01 Jul 2008
Posts: 269
Location: Lake Barkley, Ky

PostPosted: Thu Oct 15 09 2:03 am    Post subject: Reply with quote

Good work K.A.M. - it is fun to do this stuff and stand back and watch it work. But it is even more gratifying when you are doing it for someone else. You have a giving heart K.A.M. and it shows! God Bless
_________________
God Bless the "Q" and the People who eat it.... Amen!

Link to my pit build slideshow:

http://s333.photobucket.com/albums/m398/LilBabyHuey/?action=view¤t=4675c7d7.pbw
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Thu Oct 15 09 7:57 am    Post subject: Re: red Reply with quote

DreChar wrote:
k.a.m. wrote:


Ha, I wish Chuck. This is the same son-law-law that bleeds Orange. You know, Hook em Horns Laughing
I am fixing to start a trailer mount and trying to convince my son-in-laws brother to go with a red trailer. Very Happy


Paint it red and black and throw a double T on the smoke stack just for fun Very Happy

Thanks DreChar, That might turn some heads on the home field Laughing

Thanks BabyHuey,, Very Happy I do love to see a smile on some ones face when their cooker pleases them. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
iahawgheaven
Newbie


Joined: 07 Jul 2008
Posts: 43

PostPosted: Sat May 29 10 10:25 pm    Post subject: Reply with quote

I just bought one of these at academy yesterday and was thinking that the inlet was WAY too big. I like the mods great work and great info.
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Sun May 30 10 11:10 am    Post subject: Reply with quote

Thank You iahawgheaven, Very Happy The mods I did on the cooker really helped it perform better. I look forward to seeing some pics of your cooker and cooks. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Bestiverhad
BBQ Pro


Joined: 22 Oct 2009
Posts: 571
Location: The Heartland of America

PostPosted: Mon May 31 10 1:03 am    Post subject: Reply with quote

Very nice work K.A.M.
You've given new life to the old girl and with your mods, I bet it's a better cooker.
_________________
Tender - Juicy - Smoky - Goodness

Very Happy "What would you like to drink with that?" Very Happy
Back to top
View user's profile Send private message
iahawgheaven
Newbie


Joined: 07 Jul 2008
Posts: 43

PostPosted: Mon May 31 10 2:06 am    Post subject: Reply with quote

k.a.m. I have and idea I was just curious if I could get your input? Since I don't know how to weld well or have a welder could I take some measurements to a welding shop that would block the inlet off about 2" but have the piece of steel made larger enough to cover where the fire box bolts are and then measure the to the center of say the top 4 bolts have it drilled out and have a diverter welded to that piece and basically have just a bolt on mod?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Mon May 31 10 3:01 am    Post subject: Reply with quote

Thank You Bestiverhad, Very Happy It cooks fantastic now that you can control the wild temp swings it had.

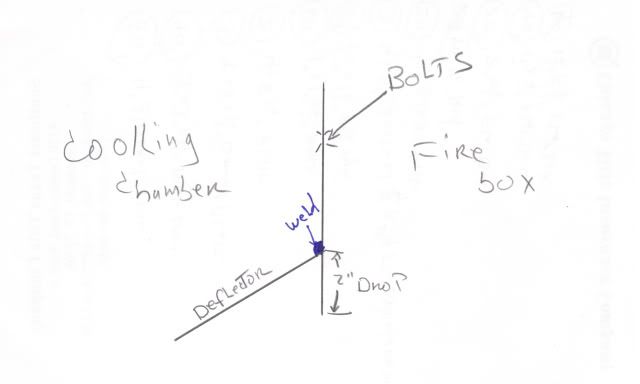

iahawgheaven, I think that is a good idea here is a quick pic I drew for you that might help your fab shop. I hope this helps. Smile

_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
iahawgheaven
Newbie


Joined: 07 Jul 2008
Posts: 43

PostPosted: Tue Jun 01 10 1:18 am    Post subject: Reply with quote

I had some time today to mess around with making a template for the shop. I did some checking back through this post and you OK joe is larger than mine is and according to the pit calculator I only need just shy of 26" of inlet and I have a little less then 65" Shocked. With the rounded corners it is hard for me to figure I work best with squares. But I figured that if I block off 3" instead of 2" I will be block approx 30 sq in. I figure that will be real close with the rounding of the hole. May ? is do I still need 2" of drop or do I just need 1" since I am blocking another inch?

Here is the template it not to scale but the measurements are good.

Back to top
View user's profile Send private message
Buckru
BBQ Fan


Joined: 18 May 2011
Posts: 107

PostPosted: Sat Jun 18 11 4:02 am    Post subject: Reply with quote

Bringin one up from a ways back as this the exact same unit a buddy of mine gave me. He had a smoker already and this was sitting in the back yard of his "new to him" house.

Mine has some grates resting against the bottom in the cooking chamber and had wondered if they were used for cooking or for holding pans or such. The tuning plates would wipe that out. Do you have any pics of the finished unit with the tuning plates?

I haven't had wild swings in temps but you feel temps hold better with the chamber inlet choked down and diffuser plate? I have no means to weld but do you think the diffuser plate welded to a flat piece could be bolted on with longer bolts through the existing holes that attach the firebox? If it could be made and then bolted on, well I can swing a wrench.

Thanks,

Buck
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Sat Jun 18 11 8:08 am    Post subject: Reply with quote

Buck, The plate could be bent by a sheet metal shop and then as you say bolted to the existing bolts. The reason for the deflector on this one was to force the heat smoke down to the tuning plate rails. The opening was right at grate level plus to big.
Here is a pic of the tuning plates installed. This after a rib cook I did last year for fathers day.

_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Buckru
BBQ Fan


Joined: 18 May 2011
Posts: 107

PostPosted: Sun Jun 19 11 5:15 pm    Post subject: Reply with quote

k.a.m.

I really appreciate you taking time to load those pics. Smokers sure have changed from what I grew up with and am suffering a bit of a learning curve here with technology, acronyms etc.

I also realized I didn't compliment your refurbish and improvements, great job.

Thanks again,

Buck
Back to top
View user's profile Send private message
PitbullTD



Joined: 19 Feb 2010
Posts: 16
Location: Olathe, KS

PostPosted: Tue Jun 12 12 11:12 am    Post subject: Reply with quote

k.a.m thanks alot for directing me to this thread. Every issue you listed about this smoker is EXACTLY the issues I have with mine.

Right down to the 1/8" gap at the top of the firebox door to the 1/4" gap at the bottom. Really irks the hell out of me.

I also have always thought the opening from box to cooking chamber seemed freaking enormous. Nice to know I was right.

Absolutely love the mods you made to this unit, and am now going to have to find a welder that i can direct to this thread Smile

Kansas welders around here? Will come to you! w/ beer, meat, and a hunger for knowledge!
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Tue Jun 12 12 11:20 am    Post subject: Reply with quote

Thank You Buck, Very Happy I truly apologize for not seeing your post. Embarassed

PitbullTD, your very welcome. I hope it helps you bring your cooker into a more consistent burn. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ZWM1982



Joined: 20 Jun 2014
Posts: 4

PostPosted: Wed Jun 29 16 12:51 am    Post subject: Re: I had time to finish the OK Joe mods now she needs paint Reply with quote

Was there any issues with the smoker holding up the 4" stack? Did you have to do any reinforcing on the inside?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Wed Jun 29 16 5:04 am    Post subject: Re: I had time to finish the OK Joe mods now she needs paint Reply with quote

ZWM1982 wrote:
Was there any issues with the smoker holding up the 4" stack? Did you have to do any reinforcing on the inside?

Welcome to the forum ZWM1982. Smile
The cooker is 3/16" thick there was no issue holding the 4" pipe.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ZWM1982



Joined: 20 Jun 2014
Posts: 4

PostPosted: Wed Jun 29 16 10:45 pm    Post subject: Reply with quote

Thanks for the welcome, and for the information. I've been contemplating this mod for awhile, now that I know it works I'm gonna get it going. Thanks again
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Thu Jun 30 16 12:14 am    Post subject: Reply with quote

ZWM1982 wrote:
Thanks for the welcome, and for the information. I've been contemplating this mod for awhile, now that I know it works I'm gonna get it going. Thanks again

Glad to help ZWM1982. Very Happy I am looking forward to seeing your finished project. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
