Welding Table.


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Welding
View previous topic :: View next topic
Author Message
tiznutbrnt
BBQ Fan


Joined: 12 Aug 2010
Posts: 315
Location: Wisconsin

PostPosted: Tue Oct 19 10 7:35 am    Post subject: Welding Table. Reply with quote

Sitting here thinking on what i can get to renovate to make a table that will NOT burn down the house.

I was thinking maybe a weight bench, or even a couple of bike frames..

Do you have any exotic or psychotic styled welding table ??

_________________
***
There are TWO way's to control a society.
One from FEAR and the other HOPE.
It is impossible to remain uninvolved.
***
Brinkmann Smoke'N Pit, Smoke King Deluxe Heavy-Duty Charcoal/Wood Smoker & Grill
***
Modified Charbroil
Back to top
View user's profile Send private message Send e-mail
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26012
Location: Southeast Texas.

PostPosted: Tue Oct 19 10 7:59 am    Post subject: Reply with quote

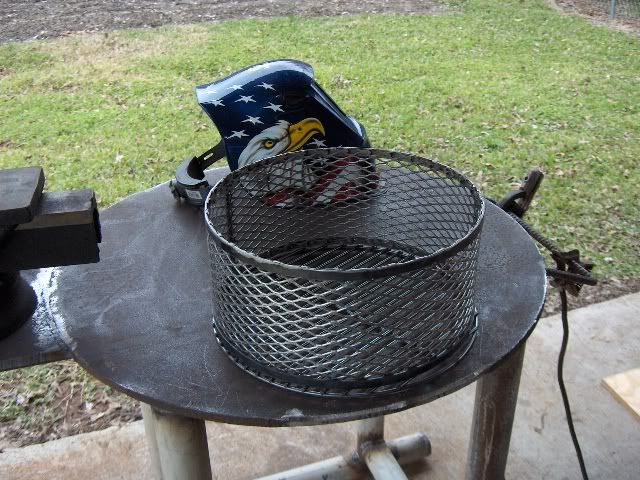

I built the frame for mine from 1.5'' SCH80 pipe the top is 1/2'' plate 30'' in diam.

_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ggarner
BBQ Fan


Joined: 22 Mar 2010
Posts: 322
Location: San Diego, CA

PostPosted: Tue Oct 19 10 10:27 am    Post subject: Reply with quote

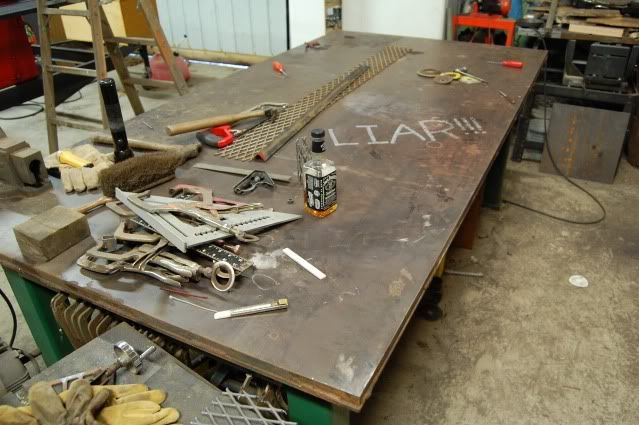

Here is my home made portable welding table

Actually its just a pallet made out of 2x4's and 4x4's that I can get any height I want with. HAHA.


I welded on top of that pallet for about a week straight without any problems though. Even did some thick stuff

This was a frame made out of 3x.25" sqr tubing.


Depending on what you plan on building on said welding table, you can make it out of 4x4's and 2x4's and put plywood on top and then just throw some steel plate on the top of it when you are welding. Otherwise for a modest welding table use 1" or 1.25" sqr tubing and put a piece of 3/16" plate on the top.

I have seen welding tables made from everything from 1" sqr tubing to 2" pipe to 6" I beams, and tops from plywood with steel on top to 1/2" steel plate depending on how much fabricating the person actually did. You can go as cheap or as fancy as your budget allows really.
Back to top
View user's profile Send private message
tiznutbrnt
BBQ Fan


Joined: 12 Aug 2010
Posts: 315
Location: Wisconsin

PostPosted: Mon Nov 01 10 2:40 am    Post subject: Reply with quote

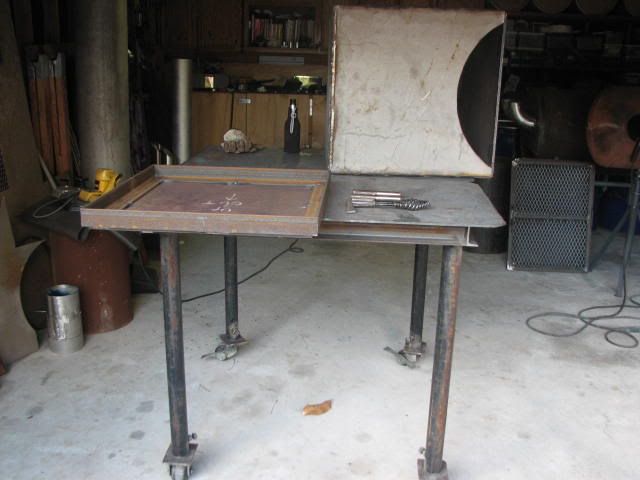

I am about to pickup this fine table with a drawer..

I will put some casters on that I took off a bed frame..


_________________
***
There are TWO way's to control a society.
One from FEAR and the other HOPE.
It is impossible to remain uninvolved.
***
Brinkmann Smoke'N Pit, Smoke King Deluxe Heavy-Duty Charcoal/Wood Smoker & Grill
***
Modified Charbroil
Back to top
View user's profile Send private message Send e-mail
Jonnyrod
BBQ Fan


Joined: 11 Feb 2010
Posts: 253
Location: Pasadena, Tx.

PostPosted: Mon Nov 01 10 3:58 am    Post subject: Reply with quote

Nice table, hope the bed frame casters work for ya. I put some under a fan stand I built and they aren't worth a flip. Crying or Very sad
_________________
http://www.thesmokering.com/forum/viewtopic.php?t=42423

http://www.thesmokering.com/forum/viewtopic.php?t=62257

'A welder is only as good as his last weld'........
Back to top
View user's profile Send private message
tiznutbrnt
BBQ Fan


Joined: 12 Aug 2010
Posts: 315
Location: Wisconsin

PostPosted: Mon Nov 01 10 4:52 am    Post subject: Reply with quote

The casters I have are about 3+ inches wide and about 2" tall..
_________________
***
There are TWO way's to control a society.
One from FEAR and the other HOPE.
It is impossible to remain uninvolved.
***
Brinkmann Smoke'N Pit, Smoke King Deluxe Heavy-Duty Charcoal/Wood Smoker & Grill
***
Modified Charbroil
Back to top
View user's profile Send private message Send e-mail
Jonnyrod
BBQ Fan


Joined: 11 Feb 2010
Posts: 253
Location: Pasadena, Tx.

PostPosted: Mon Nov 01 10 5:49 am    Post subject: Reply with quote

Sounds like you are good, I used those rinky dink 1 inch wheels. Laughing
_________________
http://www.thesmokering.com/forum/viewtopic.php?t=42423

http://www.thesmokering.com/forum/viewtopic.php?t=62257

'A welder is only as good as his last weld'........
Back to top
View user's profile Send private message
Jonnyrod
BBQ Fan


Joined: 11 Feb 2010
Posts: 253
Location: Pasadena, Tx.

PostPosted: Mon Nov 01 10 6:12 am    Post subject: Reply with quote

Here are my work tables, the first one is sized for mostly bike stuff. The second was an old homemade bike building table I chopped up and made a portable fab table out of. I will eventually add another shelf underneath with some expanded metal to strengthen it up and have a place to put all the stuff that collects on the work surface. Smile




_________________
http://www.thesmokering.com/forum/viewtopic.php?t=42423

http://www.thesmokering.com/forum/viewtopic.php?t=62257

'A welder is only as good as his last weld'........
Back to top
View user's profile Send private message
Smokenstein
BBQ Fan


Joined: 07 Jul 2010
Posts: 157

PostPosted: Wed Nov 03 10 2:35 am    Post subject: Reply with quote

Since all I have is a home garage with limited room I built a an average sized all steel table with 1/4" top plate, etc. No casters at this point.

For quick, temporary, portable tables, I have used the fold up steel sawhorses you can get at Home Depot and place a piece of 3/16" across them. Works great.

For smaller projects I just bought a Strong Hand Nomad fold up portable. Will be trying it out this week.
Back to top
View user's profile Send private message
tiznutbrnt
BBQ Fan


Joined: 12 Aug 2010
Posts: 315
Location: Wisconsin

PostPosted: Wed Nov 03 10 5:55 am    Post subject: Reply with quote

This table is so far away to pickup that I might have to get a giveaway grill and use the frame and put a top on it..
_________________
***
There are TWO way's to control a society.
One from FEAR and the other HOPE.
It is impossible to remain uninvolved.
***
Brinkmann Smoke'N Pit, Smoke King Deluxe Heavy-Duty Charcoal/Wood Smoker & Grill
***
Modified Charbroil
Back to top
View user's profile Send private message Send e-mail
Hell Fire Grill
BBQ Super Pro


Joined: 17 Mar 2007
Posts: 3921
Location: Pickler's Puragatory!!

PostPosted: Wed Nov 03 10 7:53 am    Post subject: Reply with quote

This is what I got. A 3/8 plate on the bottom layer.

Back to top
View user's profile Send private message
Impact
Newbie


Joined: 06 Nov 2010
Posts: 38

PostPosted: Mon Nov 08 10 7:55 am    Post subject: Reply with quote

4' x 10' x 3/4" thick plate on a 4" channel iron frame with steel legs. I've never warped it. Shocked
