Finished Vault and Stump (Skaningens Vamp) pic 12/01/2013
Goto page 1, 2, 3  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Thu Dec 29 11 1:05 pm    Post subject: Finished Vault and Stump (Skaningens Vamp) pic 12/01/2013 Reply with quote

Hi
Now the brain is on full power. I want to combine a vault and a stump. That Iam thinking is to start with a Vault and then attach a coalshute on the side and connect it to the vaults firechamber.
To make it a stump i make the smoke come out under the food grates ( use the vaults firechamber top as a deflector). To make that happen I have to install some steel get the smoke where i want it. Close the Vaults smoke inlet at the top and open it up in the bottom so i get the smoke in the bottom of the cooking chamber. Ill try to make a drawing that shows what i mean.
I want to reduce my army of smokers Smile
I want to make it like this beacuse i smoke salmon and then i want a lot of smoke so i use the Vault and when i want to make nightly bbq´s i use the stump

So what do you guys think of this idea

Skaningen


Last edited by Skaningen on Sun Jan 13 13 2:11 am; edited 12 times in total
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Thu Dec 29 11 6:38 pm    Post subject: Reply with quote

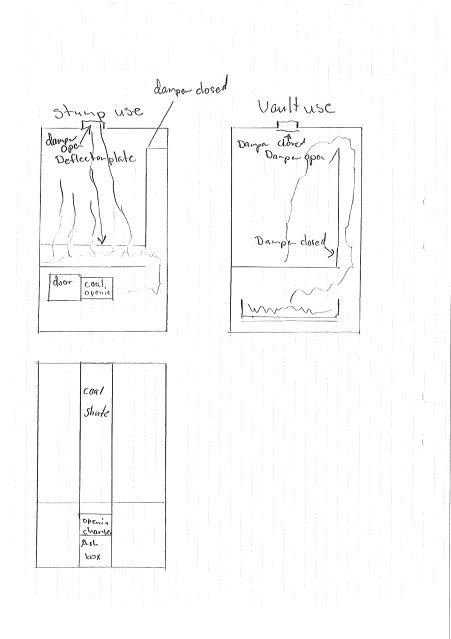

Here is drawing how i want it to work

Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sat Dec 31 11 4:48 am    Post subject: Reply with quote

Got some of the steel today. Was at the steel shop today and cut up most of steel for my Skaningens Vamp (Stump and vault combo) Got most of the frame together this evening. He forgett to order some of the steel so i continue next week with this projekt. Here are some photo of the started Vamp







Always wonderd what these was for bought some for this projekt. Now i love them Smile


Happy new smoking year to you all here

Skaningen
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sun Jan 15 12 3:44 am    Post subject: Reply with quote

So now finaly i got some of the metal for this project.

Pitmaker clone part
I have put the pipes for the chimney in the frame and i decided that i let out the smoke on the backside instead of the top. Its going to be a flat roof. (otherwise i dont get it out from my garage Smile ). Iam also integrating air inlet for the fireplace in the frame so i get all my valves in the front of the smoker

Stump clone part.
I will put the chimney under the others so that will be about 1 inch from the top in the smoking chamber.

Here are some new photo

Piping for the chimney








Skaningen
Back to top
View user's profile Send private message
QObsession
BBQ Fan


Joined: 23 Jul 2007
Posts: 243

PostPosted: Sun Jan 15 12 7:12 am    Post subject: Reply with quote

Go for it man, Keep the pics coming. WIth those small stacks you are going to need some kind of forced air system.
_________________
May the smoke always caress your meat in a manner that brings a smile to your face.
Back to top
View user's profile Send private message
Bedlam BBQ
BBQ Super Pro


Joined: 31 Aug 2006
Posts: 1610
Location: Broken Arrow, OK

PostPosted: Sun Jan 15 12 7:15 am    Post subject: Reply with quote

Great looking build - very unique. I can't help much on the vault functionality, but if you have any questions on the Stump part, I can try and help.
_________________
Steve

Stumper clone with Stoker
Bedlam BBQ
Competition Team
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sun Jan 15 12 4:12 pm    Post subject: Reply with quote

@ QObsession
Thanks
I've been looking and reading about the stacks and the seams to be 1x8 and this stack is 2x4 so hopefully it works. without some forced air. I've already bought a vent system to use if it not works Smile .

@ Bedlam BBQ
Thanks ill keep that in mind.


Skaningen
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Mon Jan 16 12 1:39 am    Post subject: Reply with quote

Today i started with raising the stacks so i can close them.
Then i made the air supply for the fire chamber I integrated it in frame. Now Iam waiting for the metal shop to fix there metal cuter so i can get some more metal.



Some photos of the air intake








Skaningen
Back to top
View user's profile Send private message
DawgPhan
BBQ Super Pro


Joined: 12 May 2005
Posts: 3444

PostPosted: Mon Jan 16 12 5:52 am    Post subject: Reply with quote

I have been wanting one of these for a while now. Good luck. i will definitely be keeping up.
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Fri Jan 27 12 2:24 am    Post subject: Reply with quote

Got some metal now. So I started with the fireplace and after that i mounted the wheel so I can move it. Its going to be a heavy smoker Smile. Waiting for the sheet to stumps fireplace and coalshute so i can weld that and continue with the smoker cabinet.

Some new pictures



Fireplace




Skaningen
Back to top
View user's profile Send private message
dakota0311



Joined: 04 Jan 2012
Posts: 24

PostPosted: Fri Jan 27 12 5:02 am    Post subject: Reply with quote

Looking good. I am following close keep the pis coming
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sun Jan 29 12 3:32 am    Post subject: Reply with quote

Thanks dakota0311
Todays work was to get the stump part ready. That i succeeded with before I went out of gas for the welder.

The loose pipe from stump Iam going to connect to the bottom of the Vault water tray. Going to make it removable so when I dont use the stump I take away the pipe and close the connection to Vaults water tray. And Iam getting all this crazy ideas sober Smile. So here is some new pics.

Stump part


Beginning of the connection to Vault




Skaningen
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Mon Feb 06 12 3:32 am    Post subject: Reply with quote

Now i made conversion kit ready so I can switch between Vault and Stump smoker. So from now its just welding all the sheet and there are a few meter to do Smile.
Have to get to the doctor tomorrow and take out a piece of metal in the eye that's life when you don't use the protection glasses all the time. Stupid .

Here are some photos from the kit



Used as Stump




Used as Vault.
Then I close the hole both from under and above the one above i can put water in if needed.




What`s missing in the kit is a heat deflector to use with Stump

Skaningen
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Thu Mar 08 12 3:55 am    Post subject: Reply with quote

So back to the smoker again.
Had some problem with the mag welder the welding gun started to leak gas so i had to order a new one. 3 weeks delivery and now there is some problem with the electricity. I ordered a new machine a Kemppi Ra 181 http://www.diywelding.co.uk/?i=224812
This should work little better than the old Esab 150.

I made some progress on the smoker.

Here is the panel to control the air for the different smoking type Vault or Stump



Smoke exhaust when in Stump mode


Smoke exhaust




Drain pipe from the smoker 2" and 1" for cold smoking


Here are the doors in place


Skaningen


Last edited by Skaningen on Sun Mar 18 12 2:27 am; edited 1 time in total
Back to top
View user's profile Send private message
Maniac
BBQ Super Pro


Joined: 02 Oct 2010
Posts: 2432
Location: Pa

PostPosted: Thu Mar 08 12 8:24 am    Post subject: Reply with quote

Skaningen your build is looking very good so far....very nice fab work. looks like your getting close.. Smile
_________________
RF Smoker
20" disc
uds
Back to top
View user's profile Send private message
h4ppy-chris
BBQ Fan


Joined: 18 Feb 2012
Posts: 258
Location: Burnley

PostPosted: Thu Mar 08 12 4:08 pm    Post subject: Reply with quote

looking good keep the pix coming.
_________________
should i play with the wife or the UDS? hmm, the UDS took some playing with.
Back to top
View user's profile Send private message
ChuckieD
BBQ Super Pro


Joined: 07 Oct 2009
Posts: 1129

PostPosted: Sat Mar 10 12 12:34 am    Post subject: Reply with quote

Skaningen,
Nice work, your rig is looking Great! Cool
I think your design concept is very interesting and I'll be watching for more updates. Wink
_________________
SEE YA!
Chuckie D.


Big Green Egg XL
UDS build
The Old Brick Barbecue Project!
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sat Mar 10 12 5:42 am    Post subject: Reply with quote

@ chuckied
I like to work with metal its a great material to work with.
In my garden I have all kind of smokers. so this time I want to make something like no one have done before. So I decided to make a clone of the Vault and Stump combined.
And in the working progress there is an extra pipe for cold smoking.
Waiting for the new mag so i can continue the build.

Skaningen
Back to top
View user's profile Send private message
ChuckieD
BBQ Super Pro


Joined: 07 Oct 2009
Posts: 1129

PostPosted: Sat Mar 10 12 7:43 am    Post subject: Reply with quote

Skaningen said,
Quote:
Waiting for the new mag so i can continue the build.

I love it when I hear the truck pull up with new tools in it. Very Happy
Have fun with your new toy! Wink
_________________
SEE YA!
Chuckie D.


Big Green Egg XL
UDS build
The Old Brick Barbecue Project!
Back to top
View user's profile Send private message
Skaningen
Newbie


Joined: 14 Jul 2007
Posts: 83
Location: Sweden Horby

PostPosted: Sat Mar 10 12 2:35 pm    Post subject: Reply with quote

Double post Smile

Last edited by Skaningen on Sat Mar 10 12 2:36 pm; edited 1 time in total
