Rectangular cooking chamber


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Fri Apr 12 13 4:11 am    Post subject: Rectangular cooking chamber Reply with quote

Any one out there using a horizontal chamber that is rectangular plate steel w/ a flat top?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26014
Location: Southeast Texas.

PostPosted: Fri Apr 12 13 8:25 am    Post subject: Reply with quote

ekamm, there are several builds here on the ring with flat tops.
This one is probably mt favorite.
http://thesmokering.com/forum/viewtopic.php?t=39292
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Fri Apr 12 13 9:23 am    Post subject: Reply with quote

I am planning a build with an offset fire box and a horizontal rectangular chamber. I haven't really seen that before but can't see why it would work. I sketched up something on a google program called sketchup but haven't been able to get it to post.
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26014
Location: Southeast Texas.

PostPosted: Fri Apr 12 13 9:38 am    Post subject: Reply with quote

ekamm, in my opinion it will work just fine as long as you size everything appropriately.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Catman
BBQ Fan


Joined: 17 Dec 2011
Posts: 178
Location: Fullerton, CA

PostPosted: Fri Apr 12 13 10:45 am    Post subject: Reply with quote

ekamm -

Here is a fairly recent one that I like.

http://thesmokering.com/forum/viewtopic.php?t=61906&start=0&postdays=0&postorder=asc&highlight=

And here is my own long term project still in work.

http://thesmokering.com/forum/viewtopic.php?t=56828&start=0&postdays=0&postorder=asc&highlight=
_________________
There are no perfectly good airplanes.

What ever it is, do it, do it 'till you're satisfied.
Back to top
View user's profile Send private message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Fri Apr 12 13 8:42 pm    Post subject: Reply with quote

That's pretty cool. I am building a bit larger but there are some really good ideas there.
Back to top
View user's profile Send private message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Sat Apr 13 13 5:40 am    Post subject: Reply with quote

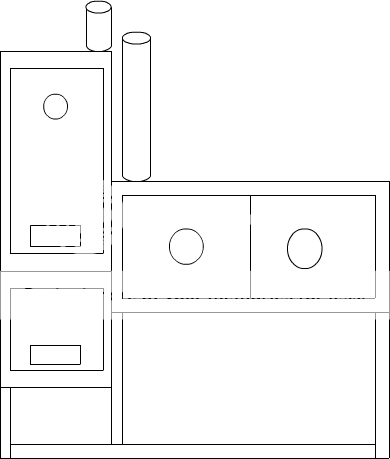

Here is a rough diagram of what I am thinking of. The dimensions are as follows
Firebox 30"Wx22"Hx24"D
Vertical chamber 30"Wx40"Hx24"D
Horizontal chamber 50"Wx30"Hx30"D
Tell me what you think, shoot holes in it all comments appreciated.


Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26014
Location: Southeast Texas.

PostPosted: Sat Apr 13 13 7:37 am    Post subject: Reply with quote

ekamm, I like all your numbers it looks like a solid build. Very Happy
You could use a slide damper like the cookers in my signatures have to introduce smoke into the warming chamber.
Here is a link to the short version of my comp trailer.
http://thesmokering.com/forum/viewtopic.php?t=60519&start=0
I hope this helps. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Sun Apr 14 13 5:00 am    Post subject: Reply with quote

Great looking rig. I haven't gotten faron my design yet and definitely planned on adding a damper to the warming box. Where did you get the springs that you use for you handles?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26014
Location: Southeast Texas.

PostPosted: Sun Apr 14 13 5:07 am    Post subject: Reply with quote

ekamm, I buy them at KCK.com. I use the 5" SS with 1/2" opening.
http://kck.com/bbq_pit_spring_handle_barbecue_grill_smoker_wood_stove.html
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ekamm



Joined: 02 Apr 2013
Posts: 23

PostPosted: Thu Apr 18 13 5:05 am    Post subject: Reply with quote

I copied the link from feldons pit calculator page. Hope that I did it right. I changed a few measurements. I noticed that one of TuscaloosaQ's trailer builds was pretty much the same idea that I had. Only they have adapted cabinet doors to a round tank and mine will be completely rectangular. I'll post a more detailed plan when I get it together.




Link to BBQ Pit Calculator
Back to top
View user's profile Send private message
Supercontinent



Joined: 04 Dec 2012
Posts: 23

PostPosted: Fri Apr 19 13 3:20 am    Post subject: Reply with quote

Hey ekamm. I am currently building a rectangular type similar to yours. I chose the shape pretty much for an easier first build for myself. I am not a metal worker by any means. Got a couple great helpers though. My cooking chamber is 40"W 30"H 24"D. The firebox is a 24" cube. I am using tuning plates in mine. I also found out that 1/4" plate is heavy Smile Mine will weigh around 800 lbs when finished. So now I am going to build a trailer as well. Here is what I have so far. And good luck!

http://www.thesmokering.com/forum/viewtopic.php?t=61455&highlight=
Back to top
View user's profile Send private message
