UDS with 2 grates
Goto page 1, 2  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Tue Jun 18 13 5:18 am    Post subject: UDS with 2 grates Reply with quote

Does anyone have any plans or designs for a UDS with two grates, water pan/diffuser plate using the original lid from the drum rather then a domed lid? I am considering just using the original lid on this first build, but would like two grates with enough distance on both for pork butts and/or briskets. Adice is welcome. Thank you!
Back to top
View user's profile Send private message Visit poster's website
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Tue Jun 18 13 9:40 am    Post subject: Reply with quote

Nobody?
Back to top
View user's profile Send private message Visit poster's website
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26018
Location: Southeast Texas.

PostPosted: Tue Jun 18 13 9:45 am    Post subject: Reply with quote

fergolicious, a comfortable fit for Butts and briskets is 6". I like about 2" off the lid so I come down 8" for the first grate then the second is 6" to 7" lower.
I hope this helps. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Copronymous
Newbie


Joined: 01 Jan 2013
Posts: 36

PostPosted: Tue Jun 18 13 9:52 am    Post subject: Reply with quote

I have two grates.
IIRC, they're set at 5.5 inches and 11 inches down from the top.
Back to top
View user's profile Send private message
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Tue Jun 18 13 9:52 am    Post subject: Reply with quote

And then just place your diffuser plate/water pan right below the second grate and you use the normal drum lid? Do you have any pics you could send me? fergoliciousbbq@gmail.com . Thanks!
Back to top
View user's profile Send private message Visit poster's website
Copronymous
Newbie


Joined: 01 Jan 2013
Posts: 36

PostPosted: Tue Jun 18 13 9:55 am    Post subject: Reply with quote

My diffuser sits right on top of my fire basket. The water pan sits on that.
I made the fire basket extra tall just for that - so it can hold a lot of lump and still have room to breathe under the diffuser.

And yes, I just use the normal drum lid.
Back to top
View user's profile Send private message
MGeslock
BBQ Fan


Joined: 10 Aug 2007
Posts: 332
Location: Fredericksburg, VA

PostPosted: Thu Jun 20 13 12:58 am    Post subject: Reply with quote

I have 2 as described above. I don't use a defuser.
Back to top
View user's profile Send private message Send e-mail Visit poster's website
SoEzzy
Site Admin


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Thu Jun 20 13 1:18 am    Post subject: Reply with quote

I have 5 as k.a.m.'s description above, (3 x 55 gallons, 2 x 85 gallons), but I don't use diffusers or water pans in mine either! Wink
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sat Jun 22 13 9:10 pm    Post subject: Reply with quote

Thanks guys! I have completed the ash pan and charcoal basket. I cut the top 2.5 inches off of a Weber 22.5 kettle grill to use as an insert in the top of the drum so that my dome lid will fit. Problem is, the insert is fairly loose in there. I need to locate some insulation or heat rope to put around the insert so that is fits snug inside the top of the drum. Any suggestions on where I can locate that kind of thing?
Back to top
View user's profile Send private message Visit poster's website
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Sat Jun 22 13 10:21 pm    Post subject: Reply with quote

fergolicious, alot of hardware stores carry the rope type gasket or a wood stove store. I ordered the flat gasket from www.bbqgaskets.comThey also have different types.
Back to top
View user's profile Send private message
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sat Jun 29 13 11:09 pm    Post subject: Reply with quote

I have been unsuccessful locating the oven rope or heat gaskets anywhere around here. My local hardware doesn't carry it and suggested Home Depot. HD doesn't carry it and suggested Mar Beck Appliances, they have to special order it and it is over $100. I looked on the bbqgaskets website, but there are so many. Any suggestions for me on which one would best suit my set-up? Thanks!
Back to top
View user's profile Send private message Visit poster's website
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Sun Jun 30 13 12:40 am    Post subject: Reply with quote

fergolicious, a pic of your set up would really help, it's kinda hard to figure out without seeing it, (at least for me). Embarassed
Back to top
View user's profile Send private message
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sun Jun 30 13 1:19 am    Post subject: Reply with quote

Please remind me what the regulations are on posting pics? I have them, just want to make sure and follow the rules. Thanks!
Back to top
View user's profile Send private message Visit poster's website
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sun Jun 30 13 5:00 am    Post subject: Reply with quote

Well, no one responded so I hope I reduced the pic size enough to post.

Here is the piece I cut out from the old Weber Kettle


Here is that piece sitting inside the 55 gallon drum


Another shot of the piece inside the drum


Same piece but I am trying to show the gap between the cut out and the drum

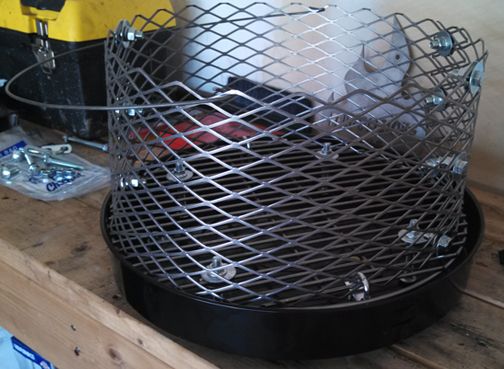

Here is the charcoal basket I built with ash pan
Back to top
View user's profile Send private message Visit poster's website
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Sun Jun 30 13 7:57 pm    Post subject: Reply with quote

fergolicious, I would try the tadpole gasket attatched to the drum. Does the weber section just sit in there or are you going to attatch it somehow?

BTW, the pic size is no bigger than 650, I set up photo bucket for 640x480. Wink
Back to top
View user's profile Send private message
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sun Jun 30 13 10:25 pm    Post subject: Reply with quote

I was thinking I would attach the ring.
Back to top
View user's profile Send private message Visit poster's website
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sun Jun 30 13 10:27 pm    Post subject: Reply with quote

What is the tadpole gasket?
Back to top
View user's profile Send private message Visit poster's website
SoEzzy
Site Admin


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Sun Jun 30 13 10:29 pm    Post subject: Reply with quote

It's a gasket made out of baby frogs! Razz Wink Laughing
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
SoEzzy
Site Admin


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Sun Jun 30 13 10:30 pm    Post subject: Reply with quote

http://www.bretonindustries.com/products/tadpole_gaskets.jpg
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
fergolicious
BBQ Fan


Joined: 04 Jul 2012
Posts: 144
Location: Gardner, KS.

PostPosted: Sun Jun 30 13 10:48 pm    Post subject: Reply with quote

Yeah, I looked it up. I am considering flipping the drum over and cutting out the bottom as my dome lid fits perfectly on that end. Then I have a removable bottom for cleaning.
Back to top
View user's profile Send private message Visit poster's website
